1835229
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

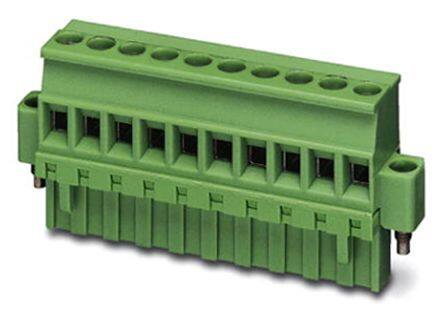

COMBICON MVSTBR RoHS Compliant 2011 Mating Flange Retention Latches (Wire Side) Terminal Block Plug, Female Sockets UL94V-0 30AWG 90° 15A
PDF
/
Inventory: 1157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 86.36mm
Length 12.6mm
Height 26mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 15
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 1.024 26.01mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 15
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Retention Latches (Wire Side)
Series COMBICON MVSTBR
Published 2011
Packaging Bulk
Physical
Weight 133.000002g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
