1835151
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

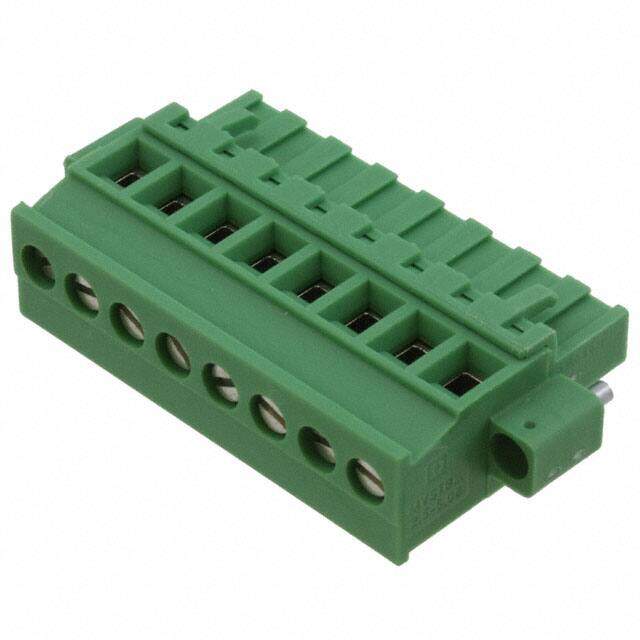

Conn Terminal Blocks F 8 POS 5.08mm Screw ST Panel Mount 12A
PDF
/
Buying Options
Total Price: USD $6.75
Unit Price: USD $6.7496
≥1 USD $6.7496
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.6mm
Length 50.8mm
Height 26mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 8
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Number of Poles 8
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Approval Agency CB, CSA, UL, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 1.024 26.01mm
Depth 12.6mm
Orientation Straight
Pitch 0.200 5.08mm
Additional Feature PA, 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Retention Latches (Wire Side)
Series COMBICON MVSTBR
Published 2011
Packaging Bulk
Physical
Weight 133.000002g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
