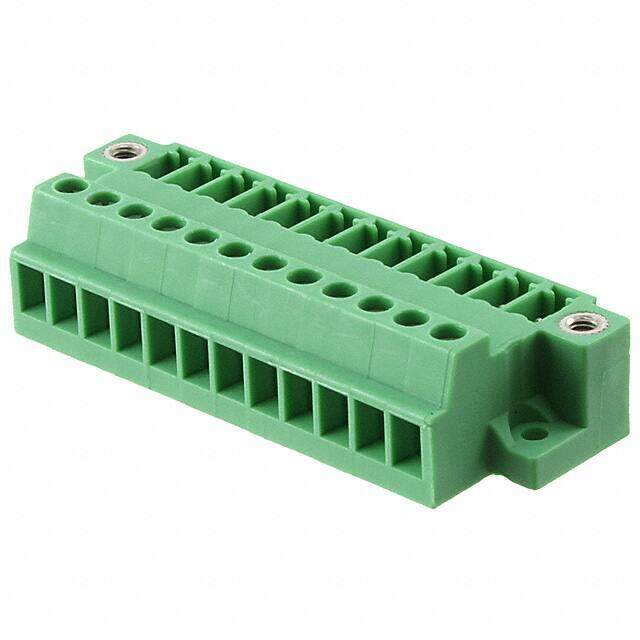

1833124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 3.81mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $21.86
Unit Price: USD $21.8592
≥1 USD $21.8592
≥10 USD $21.26256
≥100 USD $19.87128
≥500 USD $18.281648
≥1000 USD $17.939363
Inventory: 114
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Panel
Mounting Type Board Mount
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 203.999993g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCVU
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Plug, Screw
Type Receptacle, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Straight
Depth 12.5mm
Insulation Height 0.492 12.50mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, VDE, cULus
Number of Contacts 12
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 12
Safety Approval UL
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Dimensions
Height 20.3mm
Length 56.11mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
