1833043
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

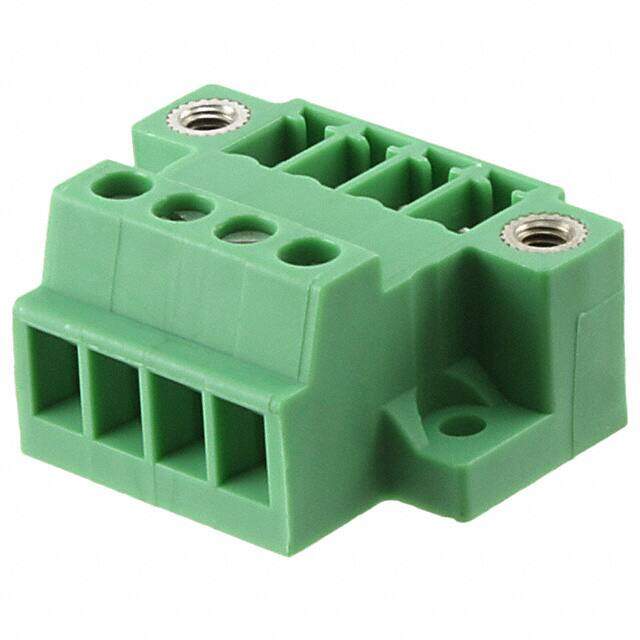

Pluggable Terminal Blocks 4 Pos 3.81mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $7.34
Unit Price: USD $7.3392
≥1 USD $7.3392
≥10 USD $7.13504
≥100 USD $6.66864
≥500 USD $6.135184
≥1000 USD $6.020291
Inventory: 200
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 25.63mm
Height 20.3mm
Technical
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Safety Approval UL
Number of Ways 4
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 4
Approval Agency CB, CSA, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.492 12.50mm
Depth 20.3mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Receptacle, Male Pins
Connector Type Plug
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MCVU
Published 2011
Packaging Bulk
Physical
Weight 203.999993g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Board Mount
Mount Cable, Panel
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
