1833027
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

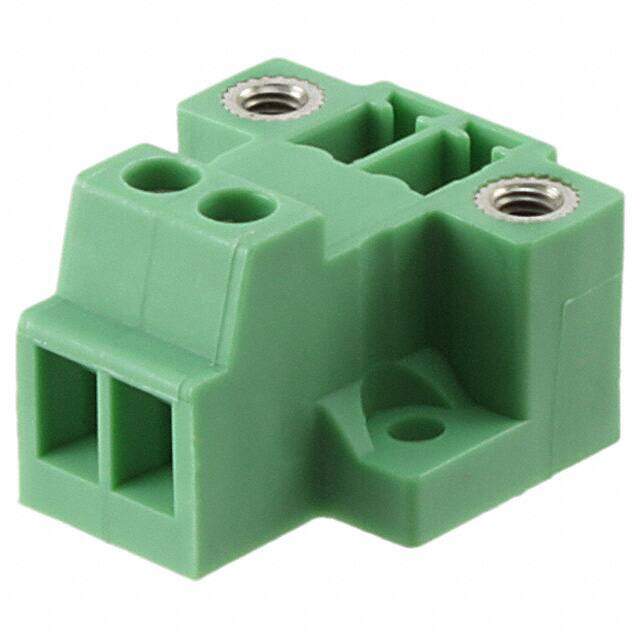

Conn Terminal Blocks F 2 POS 3.81mm Screw ST Panel Mount 8A
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.7048
≥1 USD $3.7048
≥10 USD $3.60184
≥100 USD $3.366
≥500 USD $3.09672
≥1000 USD $3.038746
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Panel
Mounting Type Board Mount
Housing Material Polyamide (PA), Nylon
Weight 203.999993g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCVU
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Plug
Type Receptacle, Male Pins
Color Green
Voltage - Rated 160V
Additional Feature POLYAMIDE, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Straight
Depth 20.3mm
Insulation Height 0.492 12.50mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 2
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Safety Approval UL; CSA
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Dimensions
Height 19.4mm
Length 18.01mm
Width 20.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
