1832442
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

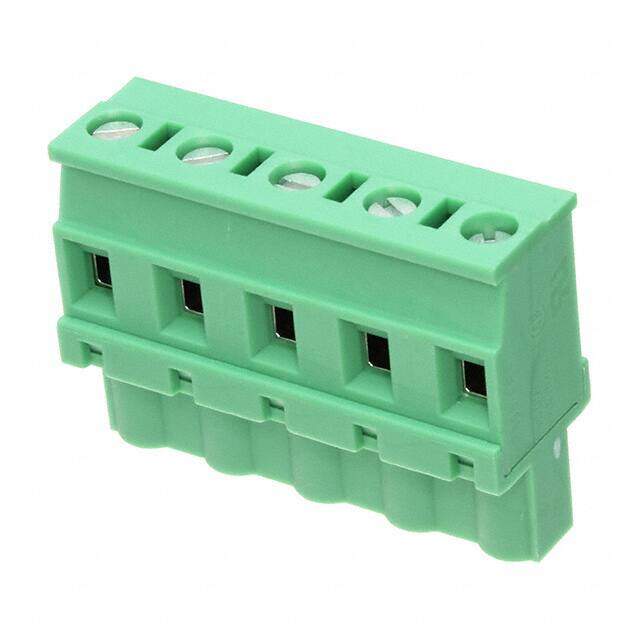

Conn Terminal Blocks F 5 POS 7.62mm Screw ST Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $6.95
Unit Price: USD $6.952
≥1 USD $6.952
Inventory: 59
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 170.097139g
Technical
Packaging Bulk
Published 2010
Series COMBICON GMVSTBW
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 500V
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Orientation Straight
Depth 12.6mm
Insulation Height 1.024 26.01mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 300V
Max Supply Voltage 500V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Dimensions
Height 26mm
Length 36.06mm
Width 36.06mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
