1831265
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

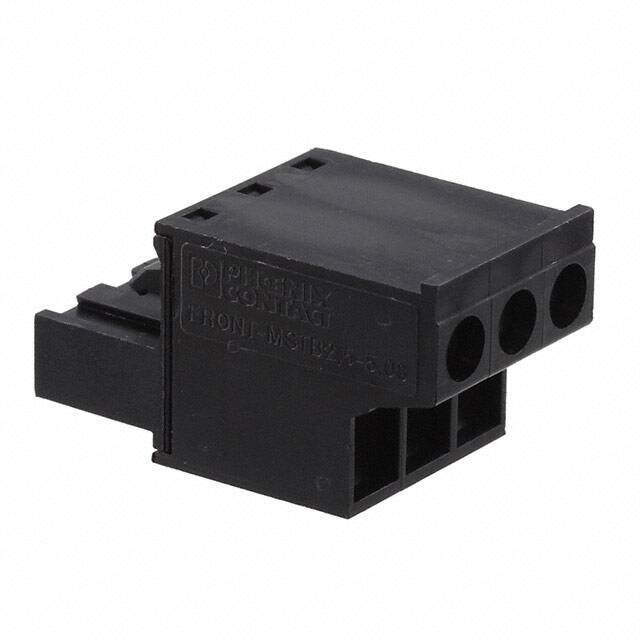

Socket enclosure - cable FRONT-MSTB Total number of pins 3 Phoenix Contact 1831265 Contact spacing: 5.08 mm 50 pc(s)
PDF
/
Inventory: 1164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Weight 8.760003g
Technical
Packaging Bulk
Published 2011
Series COMBICON FRONT-MSTB
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 3
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional Feature SAFETY APPROVAL: VDE
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 15A
Termination Style Screw - Pressure Clip
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 250V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval CB; CCA; CSA; CUL; GOST; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Screw Size M2.5
Wire Cross Section 2.5 mm2
Dimensions
Height 15.24mm
Length 15mm
Width 27.2mm
Compliance
RoHS Status RoHS Compliant
