1830948
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

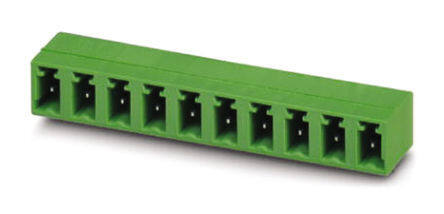

COMBICON IMC RoHS Compliant 2015 Locking Ramp Terminal Block Plug, Male Pins Vertical 8A 300V 0.569 14.45mm
PDF
/
Buying Options
Total Price: USD $9.84
Unit Price: USD $9.842084
≥1 USD $9.842084
≥10 USD $9.28499
≥100 USD $8.759423
≥500 USD $8.263606
≥1000 USD $7.795855
Inventory: 7452
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2015
Series COMBICON IMC
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Male Pins
Number of Positions 10
Color Black
Pitch 0.138 3.50mm
Insulation Height 0.569 14.45mm
Termination Style Solder
Voltage 300V
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 320V
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
