1830757
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

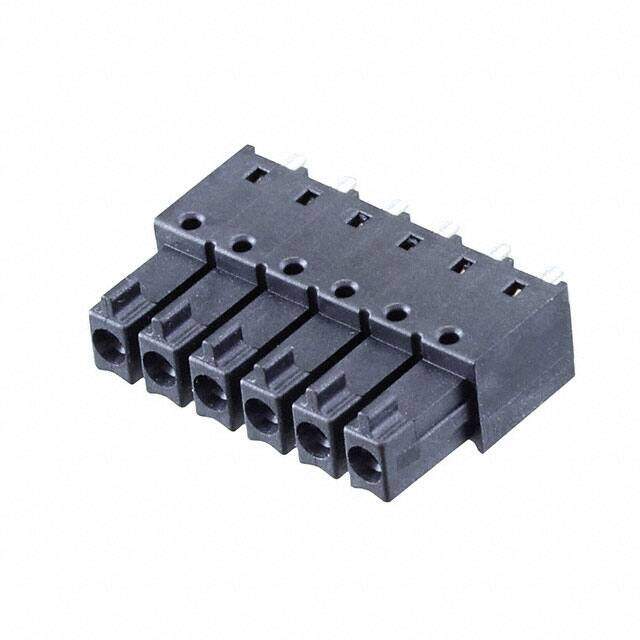

COMBICON IMC RoHS Compliant 2015 Tin Terminal Block Plug, Male Pins Vertical 8A 300V 0.569 14.45mm
PDF
/
Buying Options
Total Price: USD $6.94
Unit Price: USD $6.944384
≥1 USD $6.944384
≥10 USD $6.55131
≥100 USD $6.180473
≥500 USD $5.830637
≥1000 USD $5.500603
Inventory: 1153
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Voltage - IEC 320V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Solder
Insulation Height 0.569 14.45mm
Pitch 0.138 3.50mm
Color Black
Number of Positions 6
Type Plug, Male Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IMC
Published 2015
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
