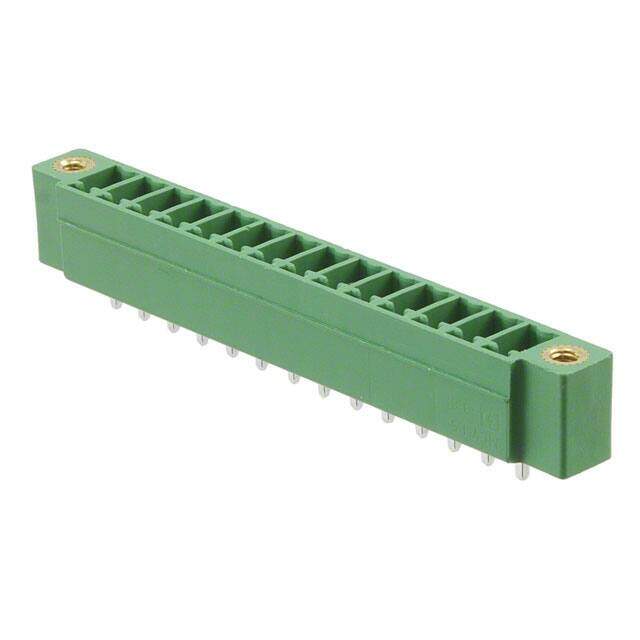

1830716 image
Favorite
1830716 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 14 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $7.08
Unit Price: USD $7.078724
≥1 USD $7.078724
≥10 USD $6.678036
≥100 USD $6.300039
≥500 USD $5.943429
≥1000 USD $5.607006
Inventory: 7952
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 63.73mm
Length 63.73mm
Height 12.7mm

Technical

Number of Positions Per Level 14
Current - IEC 8A
Header Orientation Vertical
Positions Per Level 14
Voltage - IEC 250V
Current - UL 8A
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Housing Color Green
Number of Contacts 14
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 14
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON MCV
Published 2011
Packaging Bulk

Physical

Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Tin

Supply Chain

Factory Lead Time 7 Weeks
