1830680
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

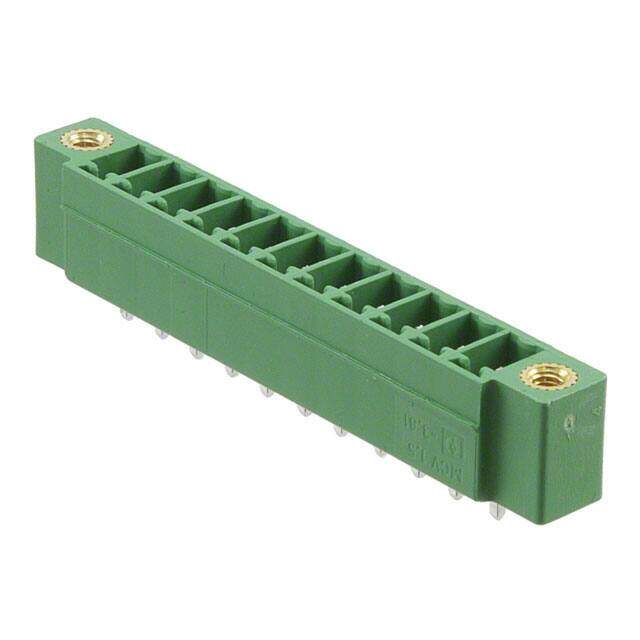

Pluggable Terminal Blocks 11 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.3
Unit Price: USD $1.3014
≥1 USD $1.3014
≥10 USD $1.227736
≥100 USD $1.158239
≥500 USD $1.09268
≥1000 USD $1.030831
Inventory: 4244
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 52.3mm
Length 52.3mm
Height 12.7mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 11
Voltage - IEC 250V
Number of Decks 1
Number of Poles 11
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency CB, CSA, VDE, cULus
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Orientation Straight
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MCV
Published 2010
Packaging Bulk
Physical
Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
