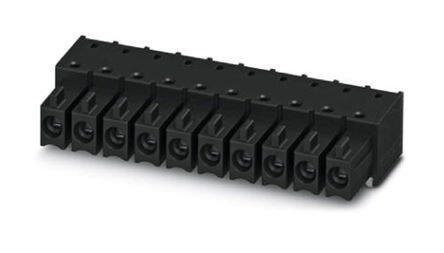

1830621 image
Favorite
1830621 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON IMC RoHS Compliant 2015 Locking Ramp Terminal Block Header, Female Sockets 90° Right Angle 8A 300V 0.248 6.30mm
PDF
/
Buying Options
Total Price: USD $8.61
Unit Price: USD $8.610746
≥1 USD $8.610746
≥10 USD $8.123347
≥100 USD $7.663534
≥500 USD $7.229744
≥1000 USD $6.820516
Inventory: 1153
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Bulk
Published 2015
Series COMBICON IMC
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Female Sockets
Color Black
Voltage - Rated 320V
Pitch 0.138 3.50mm
Insulation Height 0.248 6.30mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.079 2.00mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Positions Per Level 8
Header Orientation 90°, Right Angle
Voltage - UL 300V

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
