1830618
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

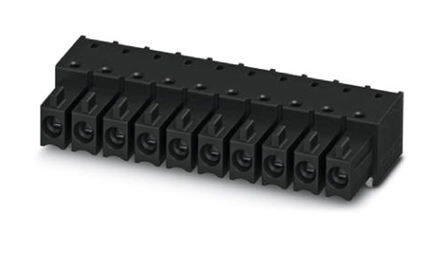

COMBICON IMC RoHS Compliant 2015 Locking Ramp Terminal Block Header, Female Sockets 90° Right Angle 8A 300V 0.248 6.30mm
PDF
/
Buying Options
Total Price: USD $7.64
Unit Price: USD $7.642532
≥1 USD $7.642532
≥10 USD $7.209931
≥100 USD $6.801824
≥500 USD $6.416822
≥1000 USD $6.053604
Inventory: 1166
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2015
Series COMBICON IMC
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Female Sockets
Color Black
Voltage - Rated 320V
Pitch 0.138 3.50mm
Insulation Height 0.248 6.30mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.079 2.00mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Header Orientation 90°, Right Angle
Number of Positions Per Level 7
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
