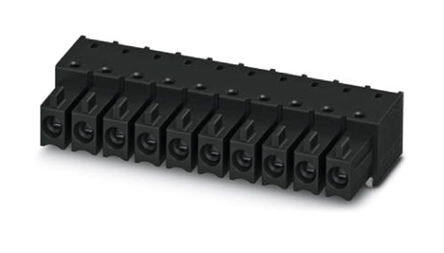

1830582
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON IMC RoHS Compliant 2015 Locking Ramp Terminal Block Header, Female Sockets 90° Right Angle 8A 300V 0.248 6.30mm
PDF
/
Inventory: 1150
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.079 2.00mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.248 6.30mm
Pitch 0.138 3.50mm
Voltage - Rated 320V
Color Black
Type Header, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON IMC
Published 2015
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
