1830509
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

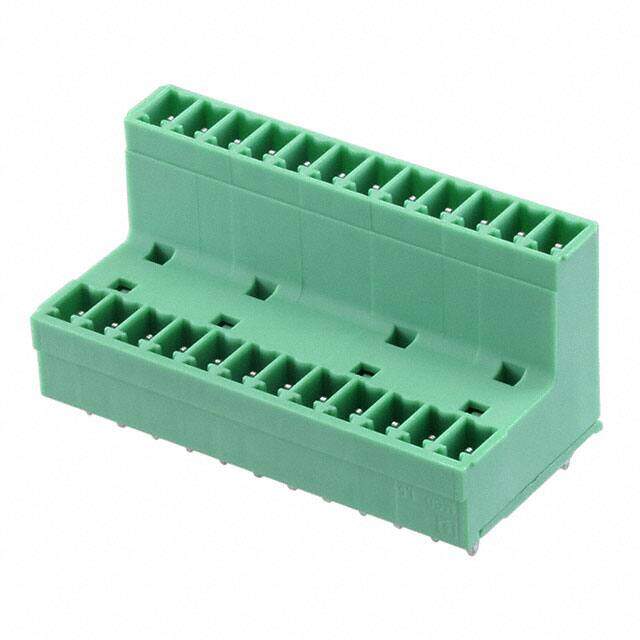

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $13.76
Unit Price: USD $13.7632
≥1 USD $13.7632
≥10 USD $13.3892
≥100 USD $12.5136
≥500 USD $11.512512
≥1000 USD $10.63663
≥3000 USD $10.167309
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 118.000014g
Technical
Packaging Bulk
Published 2007
Series COMBICON MCDV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Depth 21.9mm
Insulation Height 0.862 21.89mm
Current Rating 8A
Termination Style Solder
Approval Agency CB, CSA, UL, VDE
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 2
Current 8A
Number of Poles 12
Number of Decks 1
Voltage - IEC 320V
Number of Ways 12
Safety Approval UL
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Height 25.3mm
Length 22.7mm
Width 47.11mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
