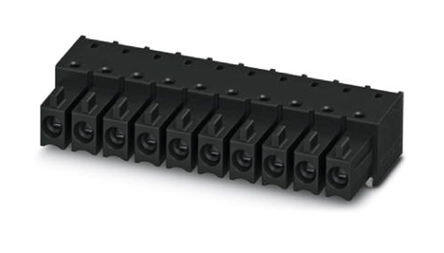

1830472 image
Favorite
1830472 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Phoenix Contact IMC Series, 3.5mm Pitch 8 Way Base Strip, Solder Termination, 8A
PDF
/
Buying Options
Total Price: USD $7.16
Unit Price: USD $7.1632
≥1 USD $7.1632
≥10 USD $6.96608
≥100 USD $6.51024
≥500 USD $5.989456
≥1000 USD $5.877309
Inventory: 120
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 8
Header Orientation 90°, Right Angle
Safety Approval CUL; UL
Number of Ways 8
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.079 2.00mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.248 6.30mm
Pitch 0.138 3.50mm
Additional Feature UL 94V-0, LCP
Voltage - Rated 320V
Number of Rows 1
Color Black
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON IMC
Published 2015
Packaging Bulk

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 6 Weeks
