1830431
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

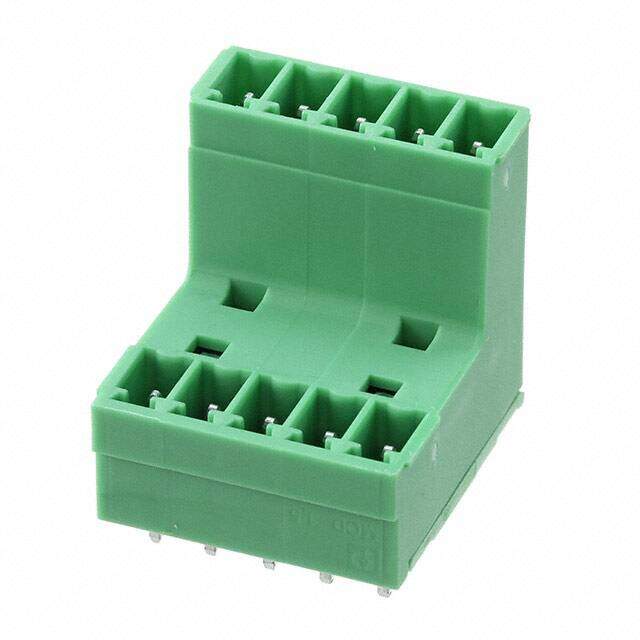

Pluggable Terminal Blocks 5 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.15
Unit Price: USD $5.148
≥1 USD $5.148
≥10 USD $5.00808
≥100 USD $4.68072
≥500 USD $4.30628
≥1000 USD $4.225654
Inventory: 121
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 22.7mm
Length 20.44mm
Height 22.7mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 5
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; VDE
Number of Ways 10
Voltage - IEC 320V
Number of Decks 2
Voltage - UL 300V
Current 8A
Number of Levels 2
Contact Tail Length 0.134 3.40mm
Voltage 300V
Approval Agency CB, CSA, VDE, cULus
Termination Style Solder
Current Rating 8A
Insulation Height 0.862 21.89mm
Depth 21.9mm
Pitch 0.150 3.81mm
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Gender Male
Number of Rows 2
Color Green
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCDV
Published 2011
Packaging Bulk
Physical
Weight 118.000014g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
