1830428
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

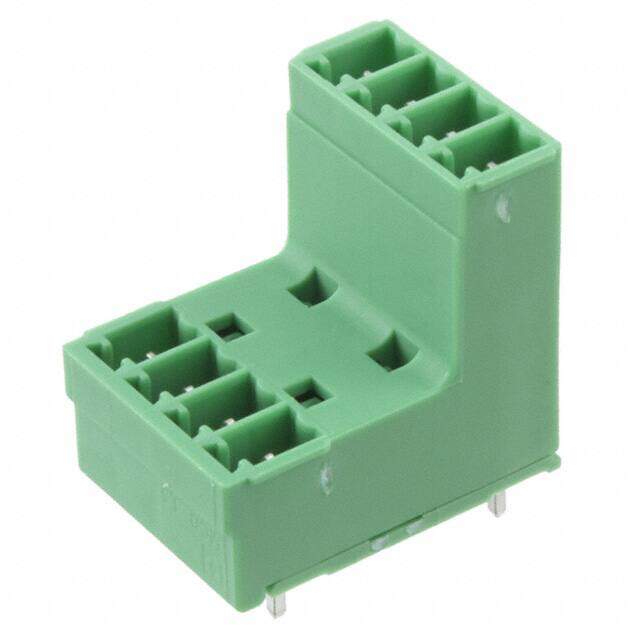

Pluggable Terminal Blocks 4 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.13
Unit Price: USD $4.1272
≥1 USD $4.1272
≥10 USD $4.0172
≥100 USD $3.75408
≥500 USD $3.453736
≥1000 USD $3.389091
Inventory: 458
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 17.05mm
Length 31.87mm
Height 21.9mm
Technical
Fastening Method CONNECTOR
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; VDE
Number of Ways 4
Positions Per Level 4
Voltage - IEC 320V
Number of Decks 1
Current 8A
Number of Levels 2
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.862 21.89mm
Depth 22.7mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCDV
Published 2011
Packaging Bulk
Physical
Weight 118.000014g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
