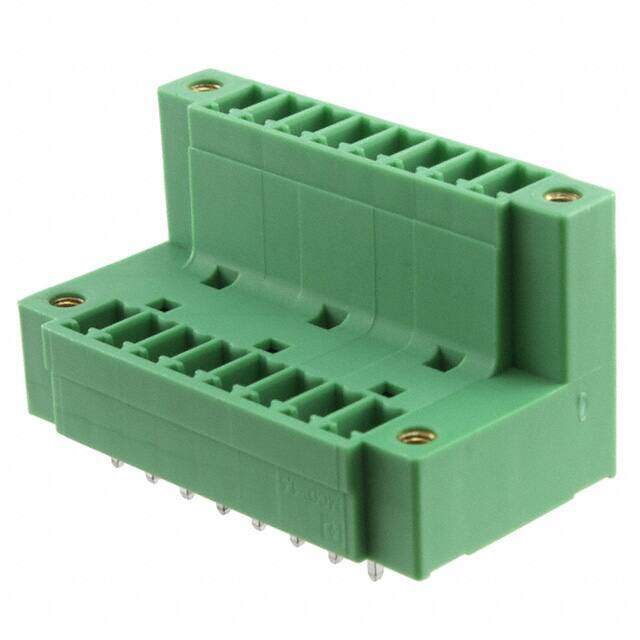

1830318
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $8.31
Unit Price: USD $8.3072
≥1 USD $8.3072
Inventory: 131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 118.999987g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCDV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 16
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Depth 22.7mm
Insulation Height 0.862 21.89mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 2
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 8
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 8
Fastening Method CONNECTOR
Dimensions
Height 25.3mm
Length 40.87mm
Width 40.87mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
