1830279
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

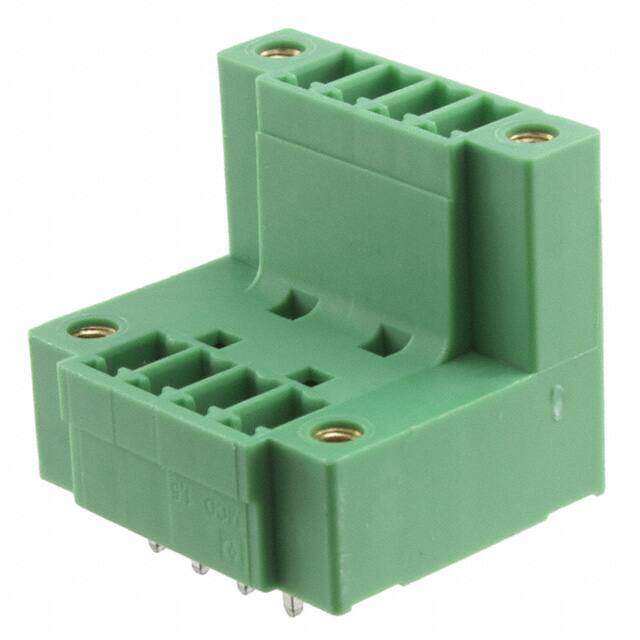

Pluggable Terminal Blocks 4 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $15.87
Unit Price: USD $15.869022
≥1 USD $15.869022
≥200 USD $6.332117
≥500 USD $6.12074
≥1000 USD $6.015708
Inventory: 1191
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 118.999987g
Technical
Packaging Bulk
Published 2010
Series COMBICON MCDV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation Straight
Depth 22.7mm
Insulation Height 0.862 21.89mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 2
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Positions Per Level 4
Number of Ways 4
Safety Approval UL
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Length 25.63mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
