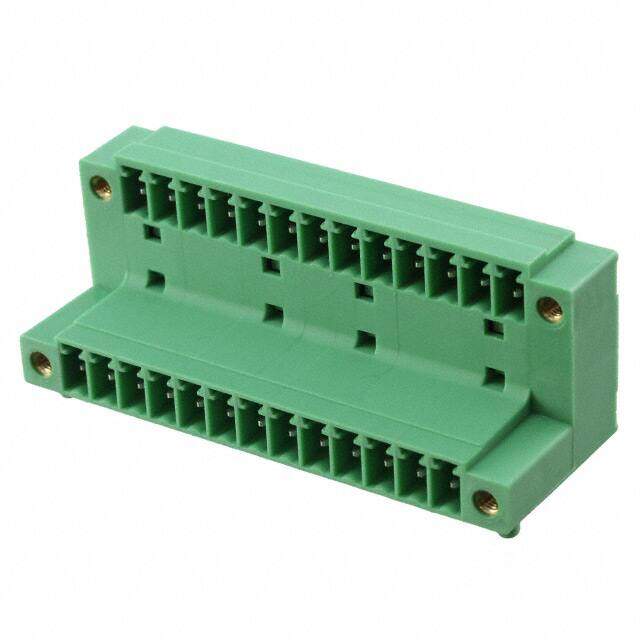

1830211 image
Favorite
1830211 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 13 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $41.8
Unit Price: USD $41.804049
≥1 USD $41.804049
≥200 USD $16.680395
≥500 USD $16.122412
≥1000 USD $15.848016
Inventory: 7173
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 117.000013g

Technical

Packaging Bulk
Published 2011
Series COMBICON MCD
Feature Board Guide, Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 26
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Depth 5.03mm
Insulation Height 0.894 22.71mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Positions Per Level 13
Number of Ways 13
Safety Approval UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR

Dimensions

Length 15.95mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
