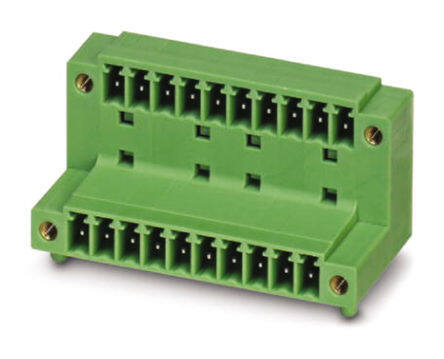

1830114
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.17
Unit Price: USD $5.1656
≥1 USD $5.1656
≥10 USD $5.02568
≥100 USD $4.69656
≥500 USD $4.320888
≥1000 USD $4.239946
Inventory: 59
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 3
Positions Per Level 3
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 2
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.894 22.71mm
Pitch 0.150 3.81mm
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Mating Flange
Series COMBICON MCD
Published 2011
Packaging Bulk
Physical
Weight 117.000013g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
