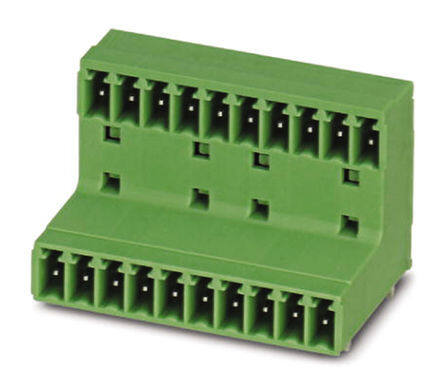

1829976 image
Favorite
1829976 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.32
Unit Price: USD $5.324
≥1 USD $5.324
≥10 USD $5.17792
≥100 USD $4.83912
≥500 USD $4.452008
≥1000 USD $4.368637
Inventory: 111
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 26.2mm
Length 16.63mm
Height 21.9mm

Technical

Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 4
Positions Per Level 4
Voltage - IEC 320V
Number of Decks 1
Current 8A
Number of Levels 2
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.894 22.71mm
Pitch 0.150 3.81mm
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCD
Published 2010
Packaging Bulk

Physical

Weight 116.000012g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
