1829154
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

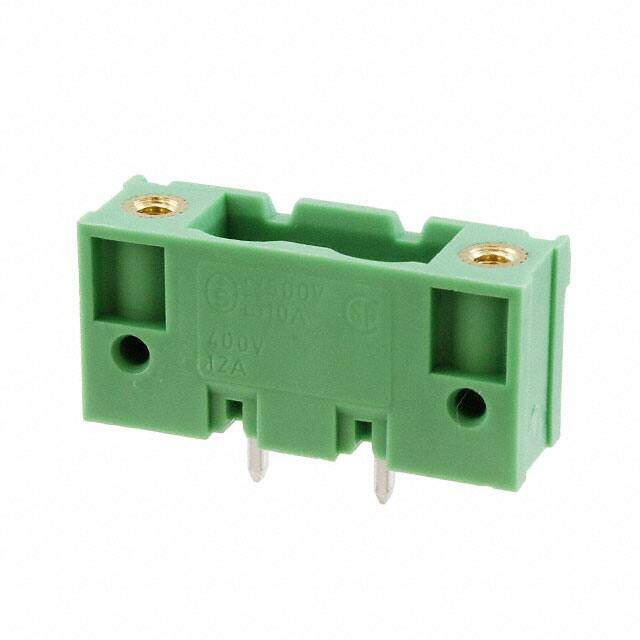

Pluggable Terminal Blocks 2 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.753704
≥1 USD $2.753704
≥10 USD $2.597836
≥100 USD $2.450781
≥500 USD $2.312063
≥1000 USD $2.181185
Inventory: 1097
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 176.999992g
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTBV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.472 12.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 2
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation Vertical
Number of Positions Per Level 2
Fastening Method CONNECTOR
Dimensions
Height 15.9mm
Length 25.82mm
Width 25.82mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
