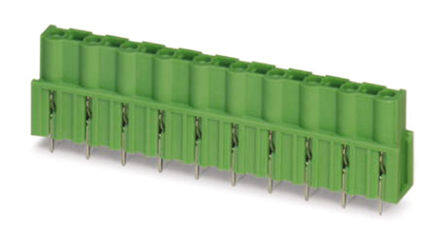

1829015 image
Favorite
1829015 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 12 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 1188
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method PLUG IN
Number of Positions Per Level 12
Current - IEC 12A
Header Orientation Vertical
Safety Approval UL
Number of Ways 12
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 300V
Current 10A
Number of Levels 1
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.748 19.00mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Number of Rows 1
Color Green
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON GICV
Published 2011
Packaging Bulk

Physical

Weight 10.530005g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 6 Weeks
