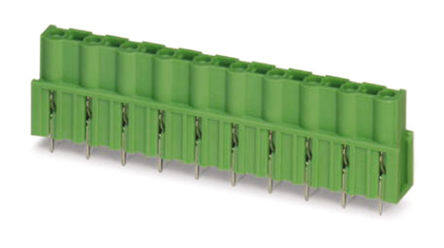

1828977
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $8.3
Unit Price: USD $8.302826
≥1 USD $8.302826
≥10 USD $7.832857
≥100 USD $7.389488
≥500 USD $6.971217
≥1000 USD $6.576614
Inventory: 7222
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 7.169991g
Technical
Packaging Bulk
Published 2011
Series COMBICON GICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 500V
Pitch 0.300 7.62mm
Insulation Height 0.748 19.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Number of Levels 1
Current 10A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 8
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 8
Fastening Method PLUG IN
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
