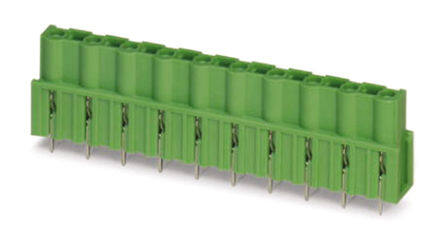

1828964
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 7 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 1123
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 178.999995g
Technical
Packaging Bulk
Published 2010
Series COMBICON GICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 500V
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 0.748 19.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Number of Levels 1
Current 10A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 7
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 7
Fastening Method PLUG IN
Dimensions
Height 22.6mm
Length 10.2mm
Width 53.24mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
