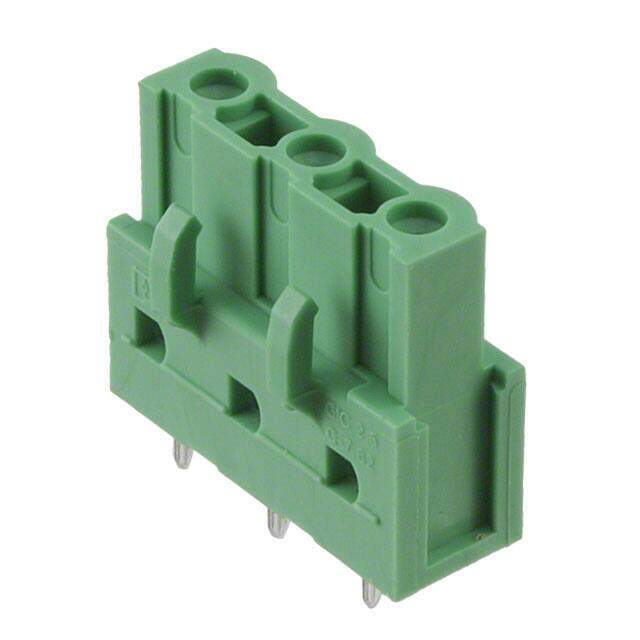

1828922
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
Inventory: 132
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 22.76mm
Length 10.2mm
Height 22.6mm
Technical
Number of Positions Per Level 3
Header Orientation Vertical
Safety Approval UL; VDE; CSA
Number of Ways 3
Voltage - IEC 1kV
Number of Decks 1
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.748 19.00mm
Depth 10.2mm
Orientation Straight
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V-0
Voltage - Rated 500V
Number of Rows 1
Color Green
Number of Positions 3
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON GICV
Published 2011
Packaging Bulk
Physical
Weight 178.999995g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
