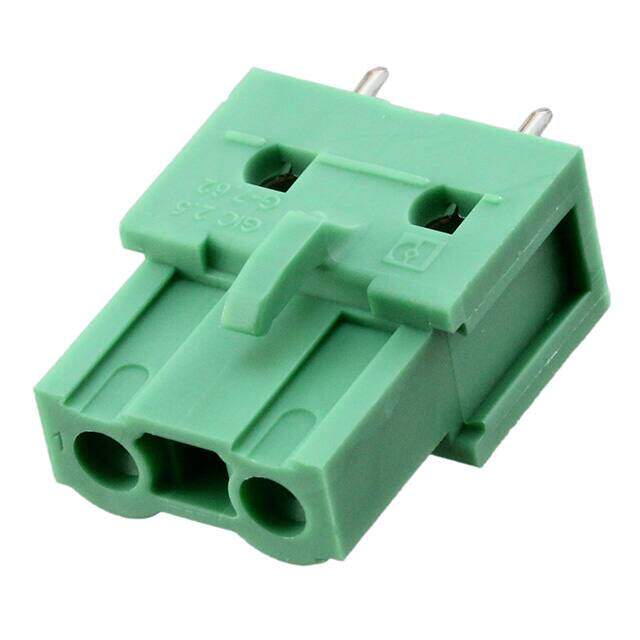

1828919 image
Favorite
1828919 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.6368
≥1 USD $1.6368
Inventory: 25
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 22.6mm
Length 27mm
Height 15.14mm

Technical

Number of Positions Per Level 2
Current - IEC 12A
Header Orientation Vertical
Safety Approval UL
Number of Ways 2
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 300V
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.748 19.00mm
Depth 27mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA; 94V-0
Voltage - Rated 500V
Number of Rows 1
Color Green
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Type Header, Female Sockets
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON GICV
Published 2011
Packaging Bulk

Physical

Weight 178.999995g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
