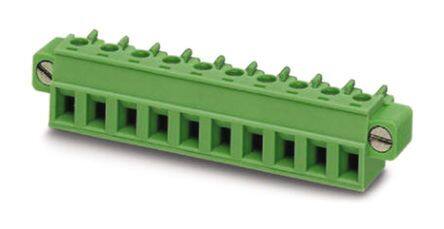

1828838 image
Favorite
1828838 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 5 Pos 7.62mm Invert Plug 24-12AWG Screw
PDF
/
Buying Options
Total Price: USD $9.21
Unit Price: USD $9.208777
≥1 USD $9.208777
≥10 USD $8.687527
≥100 USD $8.195777
≥500 USD $7.731862
≥1000 USD $7.294209
Inventory: 6041
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 171.999987g

Technical

Packaging Bulk
Published 2011
Series COMBICON GIC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Male Pins
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3

Dimensions

Height 19.2mm
Length 15mm
Width 38mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
