1828812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

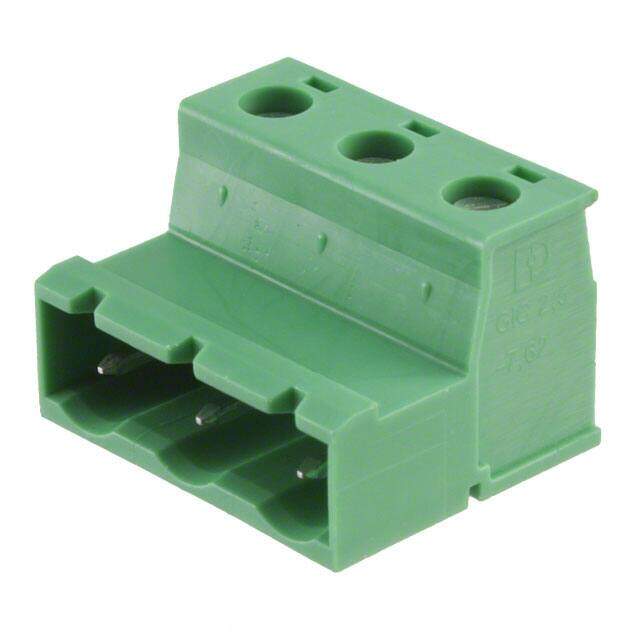

Conn Terminal Blocks F 3 POS 7.62mm Screw RA Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $5.91
Unit Price: USD $5.907444
≥1 USD $5.907444
≥10 USD $5.573056
≥100 USD $5.257604
≥500 USD $4.960003
≥1000 USD $4.679248
Inventory: 1465
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 171.999987g
Technical
Packaging Bulk
Published 2011
Series COMBICON GIC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Plug, Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 19.2mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, UL, VDE
Number of Contacts 3
Voltage 300V
Max Supply Voltage 400V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Height 19.2mm
Length 22.76mm
Width 19.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
