1828809
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

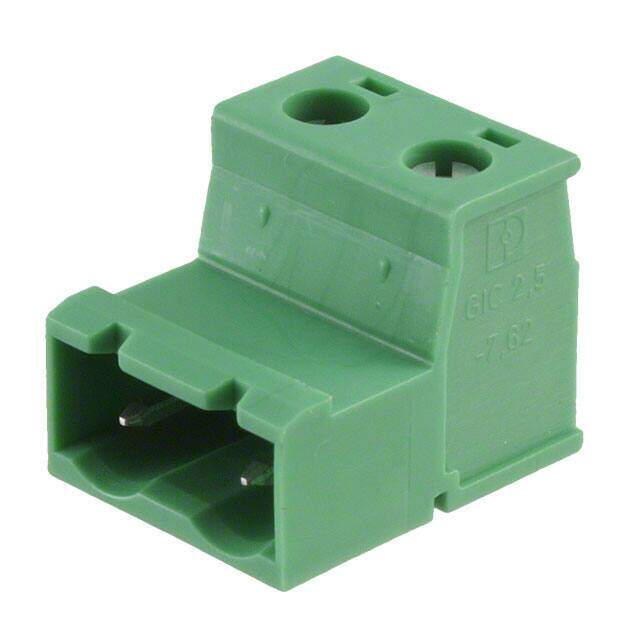

Pluggable Terminal Blocks 2 Pos 7.62mm Invert Plug 24-12AWG Screw
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9656
≥1 USD $2.9656
≥10 USD $2.88112
≥100 USD $2.6928
≥500 USD $2.477376
≥1000 USD $2.430982
Inventory: 118
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 19.2mm
Length 15mm
Height 15.14mm
Technical
Screw Size M3
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 2
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.591 15.00mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature POLYAMIDE, 94V-0
Voltage - Rated 400V
Color Green
Number of Positions 2
Type Plug, Male Pins
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON GIC
Published 2011
Packaging Bulk
Physical
Weight 171.999987g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
