1828566
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

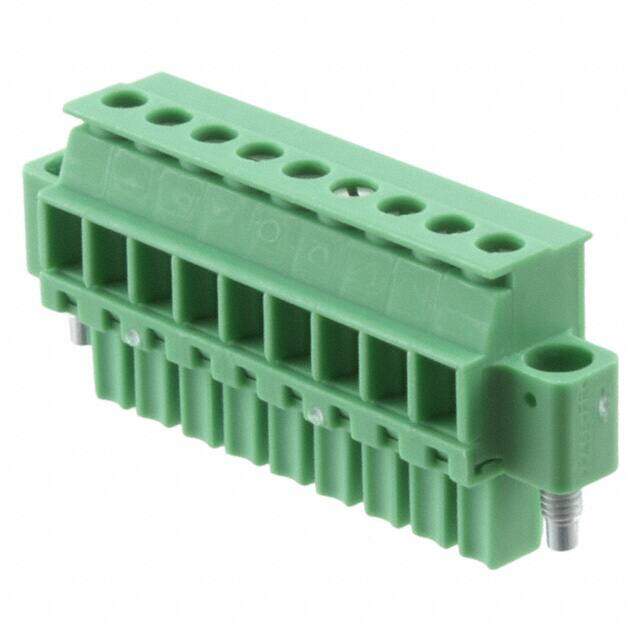

Pluggable Terminal Blocks 9 Pos 3.81mm pitch Plug 28-16 AWG Screw
PDF
/
Buying Options
Total Price: USD $8.62
Unit Price: USD $8.624
≥1 USD $8.624
≥10 USD $8.38992
≥100 USD $7.8408
≥500 USD $7.213536
≥1000 USD $7.078509
Inventory: 103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 100.999996g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCVW
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.752 19.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 270┬?
Wire Gauge or Range - mm┬▓ 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Dimensions
Height 19.1mm
Length 10.4mm
Width 44.68mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
