1828443
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

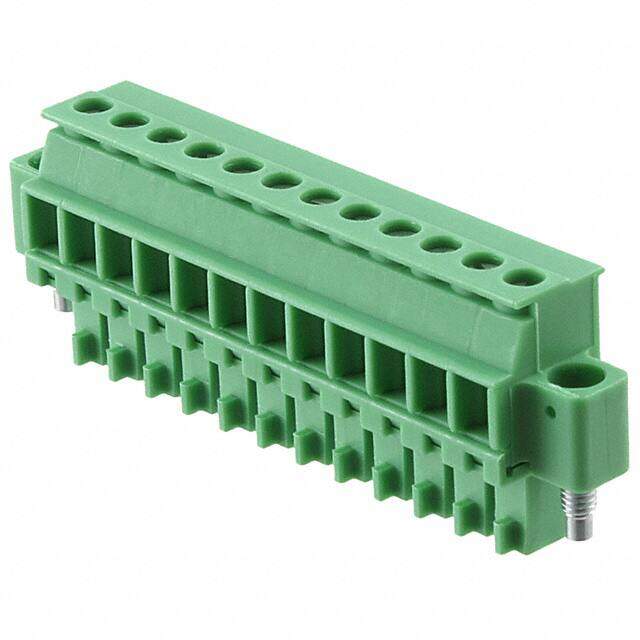

Conn Terminal Blocks F 12 POS 3.81mm Screw ST Panel Mount 8A
PDF
/
Buying Options
Total Price: USD $11.54
Unit Price: USD $11.5368
≥1 USD $11.5368
≥10 USD $11.22
≥100 USD $10.48608
≥500 USD $9.647264
≥1000 USD $9.466618
Inventory: 283
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 10.4mm
Length 56.11mm
Height 12.5mm
Technical
Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 12
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 12
Approval Agency CB, CSA, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.752 19.10mm
Depth 10.4mm
Orientation Straight
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MCVR
Published 2011
Packaging Bulk
Physical
Weight 100.999996g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Panel
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
