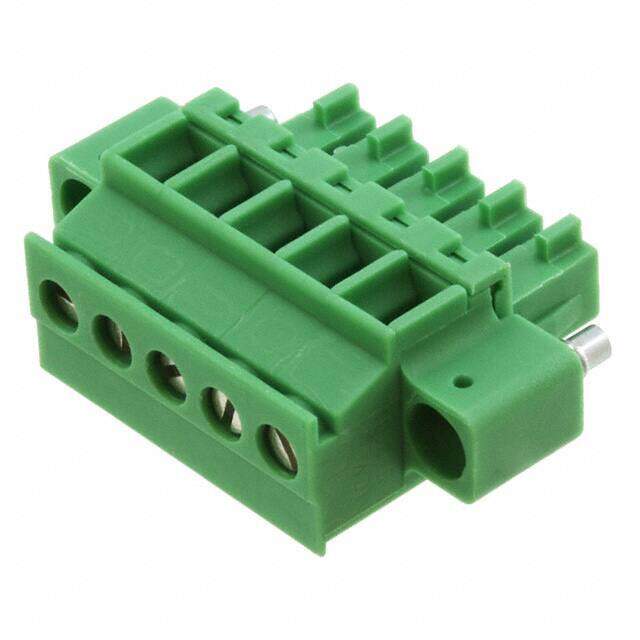

1828375 image
Favorite
1828375 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks F 5 POS 3.81mm Screw ST Panel Mount 8A
PDF
/
Buying Options
Total Price: USD $4.8
Unit Price: USD $4.796
≥1 USD $4.796
≥10 USD $4.66136
≥100 USD $4.356
≥500 USD $4.00752
≥1000 USD $3.932509
Inventory: 168
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 100.999996g

Technical

Packaging Bulk
Published 2011
Series COMBICON MCVR
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Depth 19.1mm
Insulation Height 0.752 19.10mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 5
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2

Dimensions

Height 12.5mm
Length 29.44mm
Width 29.44mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
