1828317
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

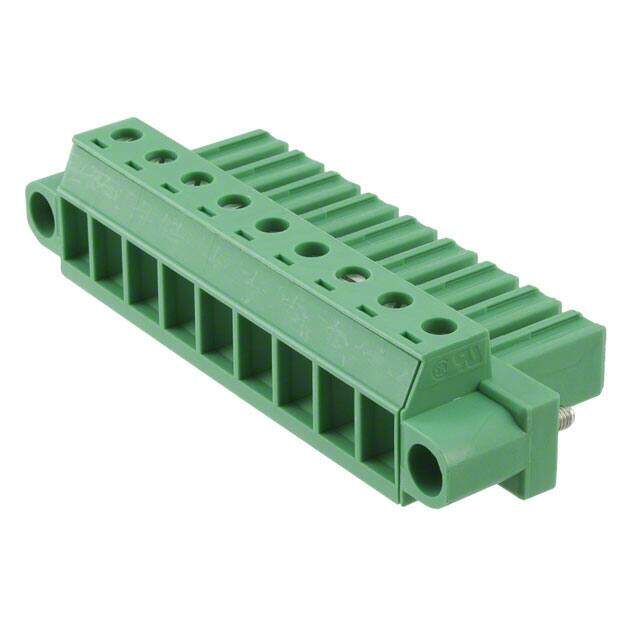

Pluggable Terminal Blocks 9 Pos 7.62mm pitch Plug 24-10 AWG Screw
PDF
/
Buying Options
Total Price: USD $22.05
Unit Price: USD $22.0528
≥1 USD $22.0528
≥10 USD $21.44912
≥100 USD $20.04552
≥500 USD $18.441984
≥1000 USD $17.038701
≥3000 USD $16.236933
Inventory: 142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 2010
Series COMBICON PC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 30.7mm
Insulation Height 0.713 18.10mm
Current Rating 20A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Max Supply Voltage 630V
Max Current Rating 20A
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 10 AWG
Number of Decks 1
Wire Gauge or Range - AWG 10-30 AWG
Current - UL 5A
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 4 mm2
Dimensions
Height 30.7mm
Length 18.1mm
Width 83.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
