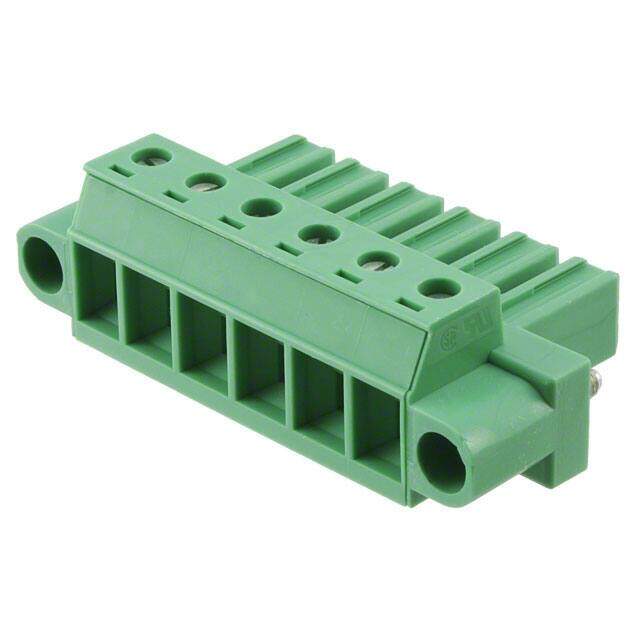

1828281
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Plug 24-10 AWG Screw
PDF
/
Buying Options
Total Price: USD $14.07
Unit Price: USD $14.074084
≥1 USD $14.074084
≥10 USD $13.277435
≥100 USD $12.525885
≥500 USD $11.816872
≥1000 USD $11.147991
Inventory: 7714
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 2012
Series COMBICON PC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 30.7mm
Insulation Height 0.713 18.10mm
Current Rating 20A
Termination Style Screw - Rising Cage Clamp
Approval Agency CSA, UL
Number of Contacts 6
Voltage 600V
Max Supply Voltage 400V
Max Current Rating 20A
Number of Levels 1
Current 20A
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 10-30 AWG
Current - UL 5A
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 4 mm2
Dimensions
Height 18.1mm
Length 60.94mm
Width 60.94mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
