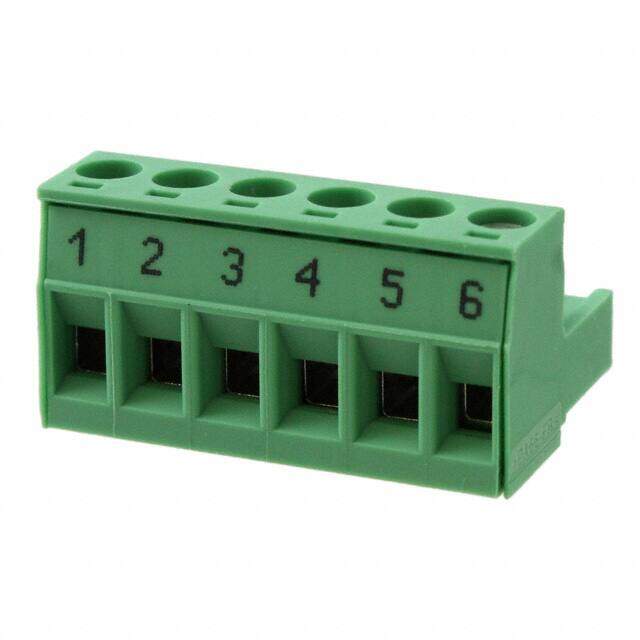

1828090 image
Favorite
1828090 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 6POS STR 5MM
PDF
/
Buying Options
Total Price: USD $4.14
Unit Price: USD $4.1448
≥1 USD $4.1448
Inventory: 161
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 30mm
Length 25mm
Height 18.2mm

Technical

Stripping Length 7mm
Screw Size M3
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL; VDE; CSA
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Gauge or Range - AWG 12-30 AWG
Number of Poles 6
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Color Green
Number of Positions 6
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Positions Stamped, Retention Latches (Non-Wire Side)
Series COMBICON MSTB
Published 2010
Packaging Bulk

Physical

Weight 1.000171kg
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin

Supply Chain

Factory Lead Time 6 Weeks
