1827949
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

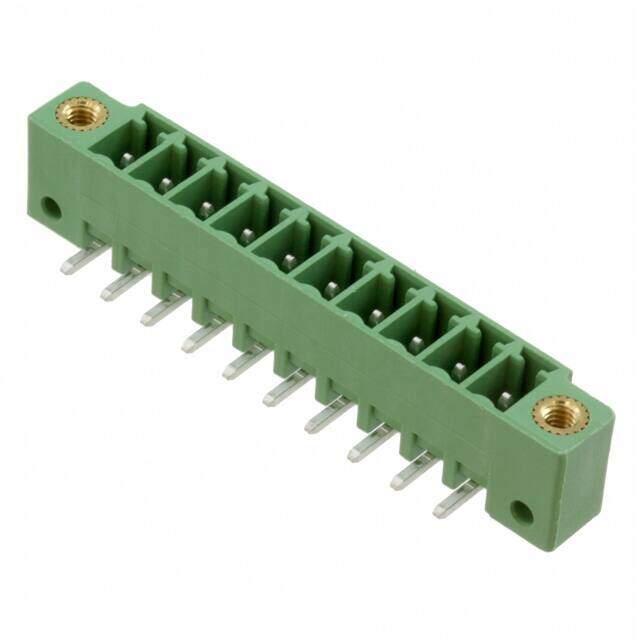

Right Angle 10 Position Terminal Block Plug 0.150 (3.81mm) PC Pins
PDF
/
Buying Options
Total Price: USD $4.12
Unit Price: USD $4.11567
≥1 USD $4.11567
≥10 USD $3.88271
≥100 USD $3.66294
≥500 USD $3.4556
≥1000 USD $3.26
≥3000 USD $3.07547
Inventory: 4229
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 48.09mm
Length 48.49mm
Height 10.65mm
Technical
Number of Positions Per Level 10
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 10
Voltage - IEC 250V
Number of Decks 1
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MC
Published 2010
Packaging Bulk
Physical
Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
