1827910
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

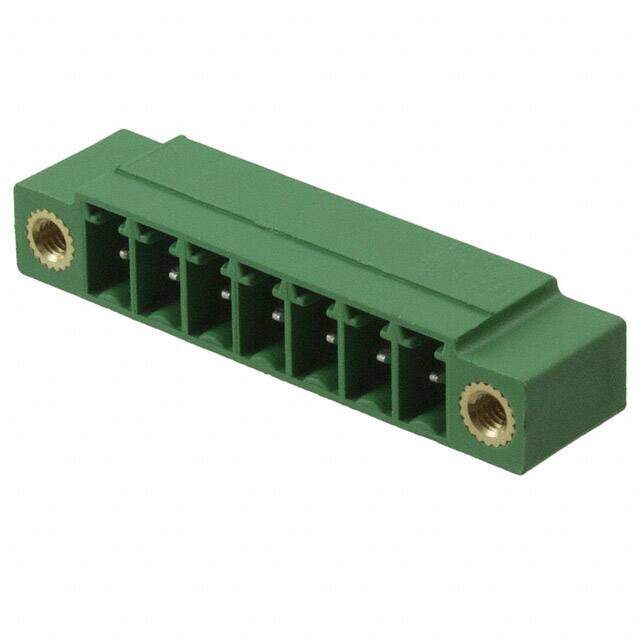

Pluggable Terminal Blocks 7 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.036
≥1 USD $3.036
Inventory: 200
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g
Technical
Packaging Bulk
Published 2011
Series COMBICON MC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 7
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: VDE
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 9.2mm
Insulation Height 0.285 7.25mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 7
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Length 37.06mm
Width 9.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
