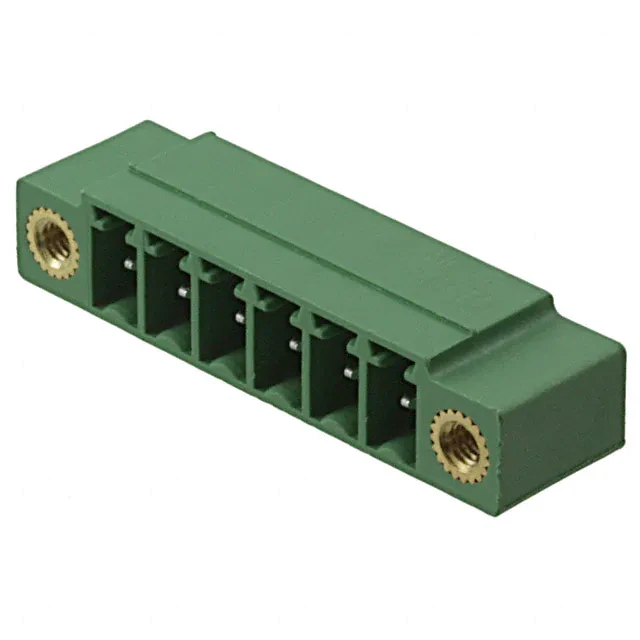

1827907 image
Favorite
1827907 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 6 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.81
Unit Price: USD $2.8072
≥1 USD $2.8072
Inventory: 93
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 33.25mm
Length 33.25mm
Height 10.65mm

Technical

Fastening Method CONNECTOR
Number of Positions Per Level 6
Header Orientation 90°, Right Angle
Safety Approval EN; UL; VDE
Number of Ways 6
Voltage - IEC 250V
Number of Decks 1
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.150 3.81mm
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MC
Published 2011
Packaging Bulk

Physical

Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
