1827499
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

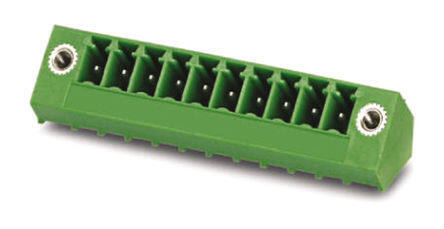

Pluggable Terminal Blocks 9 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 2539
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 45°
Safety Approval UL
Number of Ways 9
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.433 11.00mm
Orientation 45 deg
Pitch 0.150 3.81mm
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 9
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON SMC
Published 2011
Packaging Bulk
Physical
Weight 114.00001g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
