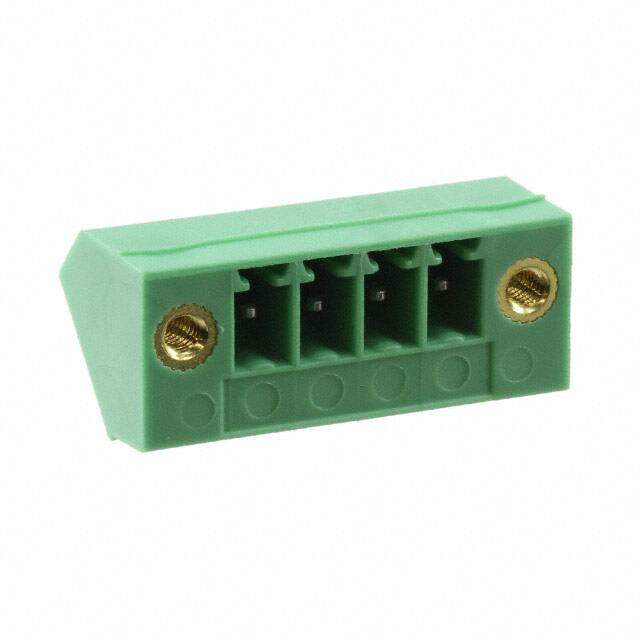

1827444 image
Favorite
1827444 image
Favorite
RoHS
RoHS RoHS compliant
Package SMC
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
Inventory: 130
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case SMC
Housing Material Polyamide (PA), Nylon
Weight 114.00001g

Technical

Packaging Bulk
Published 2011
Series COMBICON SMC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation 45 deg
Depth 7.87mm
Insulation Height 0.433 11.00mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 4
Safety Approval UL
Header Orientation 45°

Dimensions

Height 14.4mm
Length 32.51mm
Width 25.63mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
