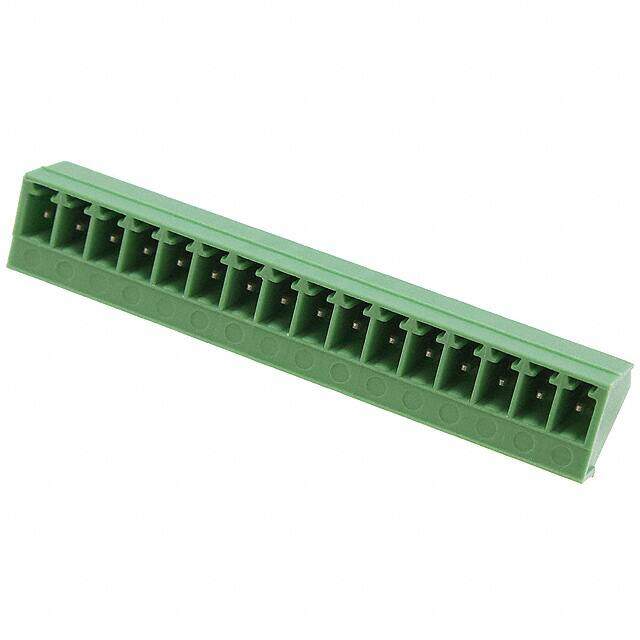

1827415
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 16 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.18
Unit Price: USD $5.1832
≥1 USD $5.1832
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case SMC
Housing Material Polyamide (PA), Nylon
Weight 114.00001g
Technical
Packaging Bulk
Published 2011
Series COMBICON SMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 16
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation 45 deg
Insulation Height 0.433 11.00mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 16
Safety Approval UL
Header Orientation 45°
Dimensions
Height 14.4mm
Length 13.1mm
Width 62.35mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
