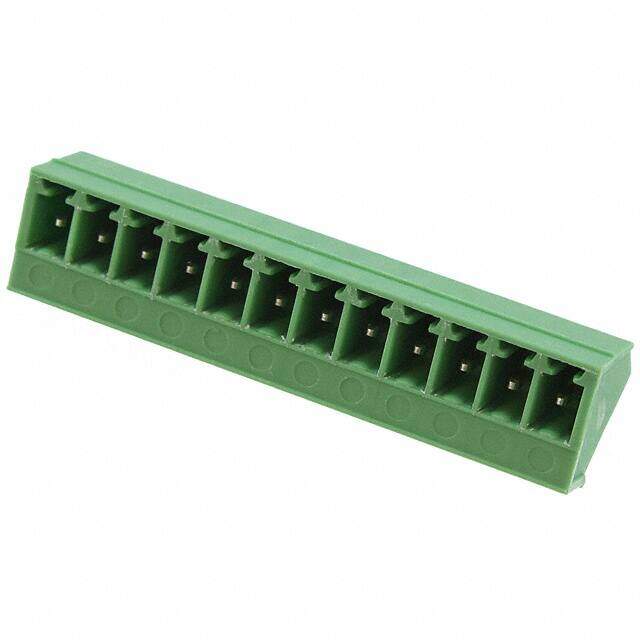

1827376
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.87
Unit Price: USD $3.872
≥1 USD $3.872
Inventory: 81
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 47.11mm
Length 47.11mm
Height 14.4mm
Technical
Number of Positions Per Level 12
Header Orientation 45°
Safety Approval UL
Number of Ways 12
Voltage - IEC 320V
Number of Decks 1
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Lead Pitch 3.81mm
Termination Style Solder
Current Rating 8A
Insulation Height 0.433 11.00mm
Depth 13.1mm
Orientation 45 deg
Pitch 0.150 3.81mm
Voltage - Rated DC 160V
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SMC
Published 2011
Packaging Bulk
Physical
Weight 114.00001g
Housing Material Polyamide (PA), Nylon
Package / Case SMC
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
