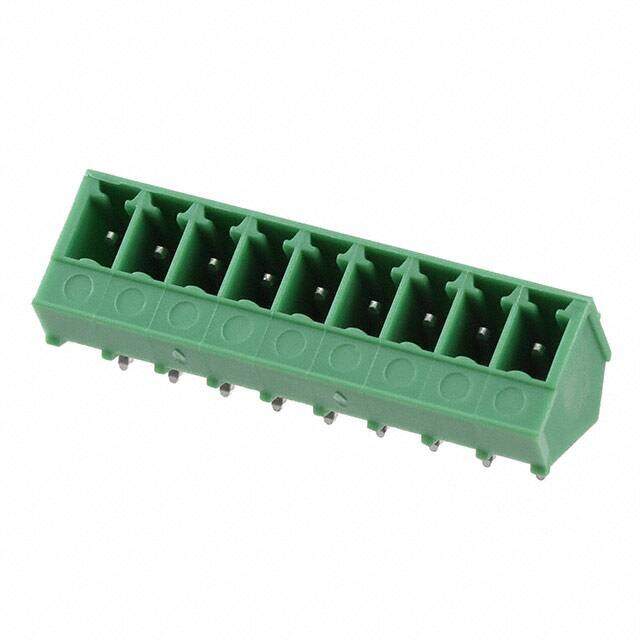

1827347
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.476
≥1 USD $3.476
≥10 USD $3.38096
≥100 USD $3.16008
≥500 USD $2.907256
≥1000 USD $2.852854
Inventory: 101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case SMC
Housing Material Polyamide (PA), Nylon
Weight 114.00001g
Technical
Packaging Bulk
Published 2010
Series COMBICON SMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation 45 deg
Depth 13.1mm
Insulation Height 0.433 11.00mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Number of Ways 9
Safety Approval UL
Header Orientation 45°
Number of Positions Per Level 9
Dimensions
Length 35.68mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
