1827279
RoHS
RoHS compliant
RoHS compliantPackage SMC
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

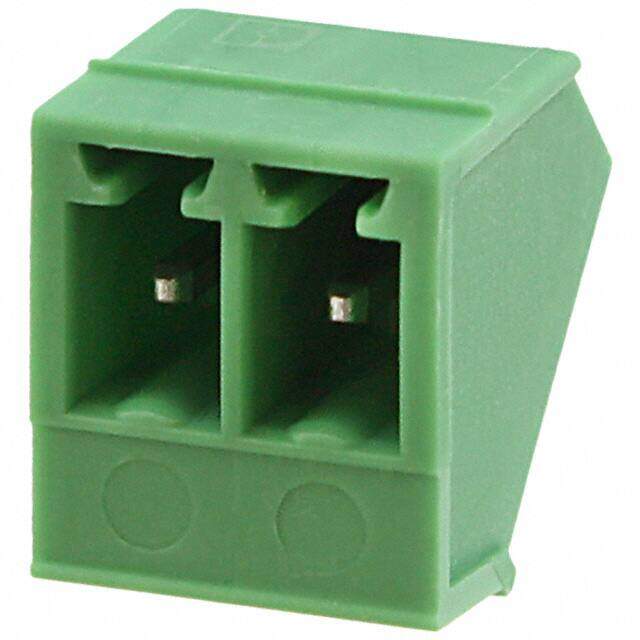

Phoenix Contact SMC 1.5/ 2-G-3.81, 3.81mm Pitch, 2 Way PCB Terminal Block Header
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
Inventory: 354
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case SMC
Housing Material Polyamide (PA), Nylon
Weight 114.00001g
Technical
Packaging Bulk
Published 2010
Series COMBICON SMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 13.1mm
Insulation Height 0.433 11.00mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 320V
Number of Ways 2
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 45°
Number of Positions Per Level 2
Fastening Method CONNECTOR
Dimensions
Height 13.1mm
Length 66.16mm
Width 14.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
