RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

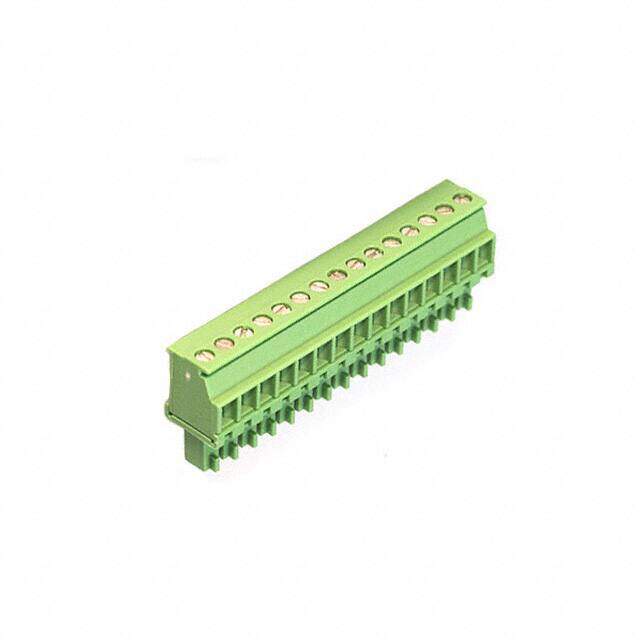

Description TERM BLOCK PLUG 15POS 3.81MM
PDF
/
Buying Options
Total Price: USD $14.32
Unit Price: USD $14.3176
≥1 USD $14.3176
≥10 USD $13.92336
≥100 USD $13.01256
≥500 USD $11.971608
≥1000 USD $11.747437
Inventory: 121
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Thickness 53.34mm
Width 10.4mm
Length 57.94mm
Height 12.5mm

Technical

Stripping Length 7mm
Screw Size M2
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 15
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Number of Poles 15
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Approval Agency CB, CSA, UL, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.752 19.10mm
Depth 19.1mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated DC 160V
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCVR
Published 2005
Packaging Bulk

Physical

Weight 99.999994g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
