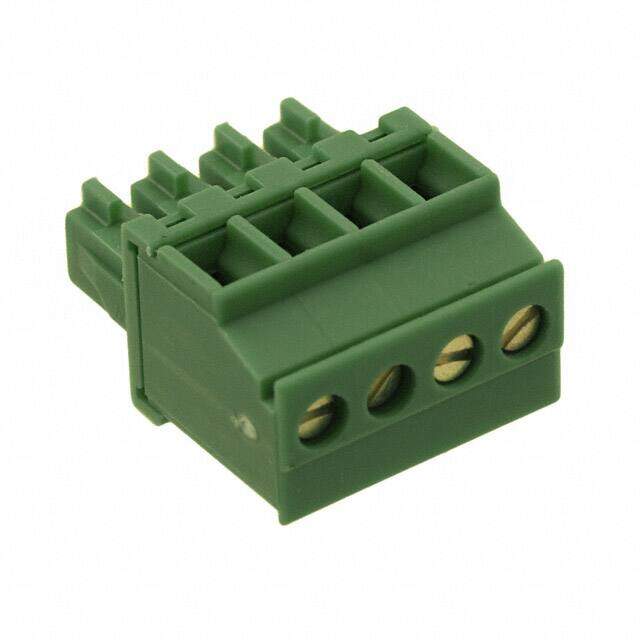

1827143
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 4POS 3.81MM
PDF
/
Buying Options
Total Price: USD $4.13
Unit Price: USD $4.1272
≥1 USD $4.1272
≥10 USD $3.95296
≥100 USD $3.781008
≥500 USD $3.677872
≥1000 USD $3.43728
≥3000 USD $3.162315
Inventory: 1162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 99.999994g
Technical
Packaging Bulk
Published 2001
Series COMBICON MCVR
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated DC 160V
Pitch 0.150 3.81mm
Orientation Straight
Depth 19.1mm
Insulation Height 0.752 19.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 160V
Approval Agency CB, CSA, UL, VDE, cULus
Lead Pitch 3.81mm
Number of Contacts 4
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Wire/Cable Gauge 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 4
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Dimensions
Height 15.73mm
Length 10.4mm
Width 19.1mm
Thickness 11.43mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
