1827062
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

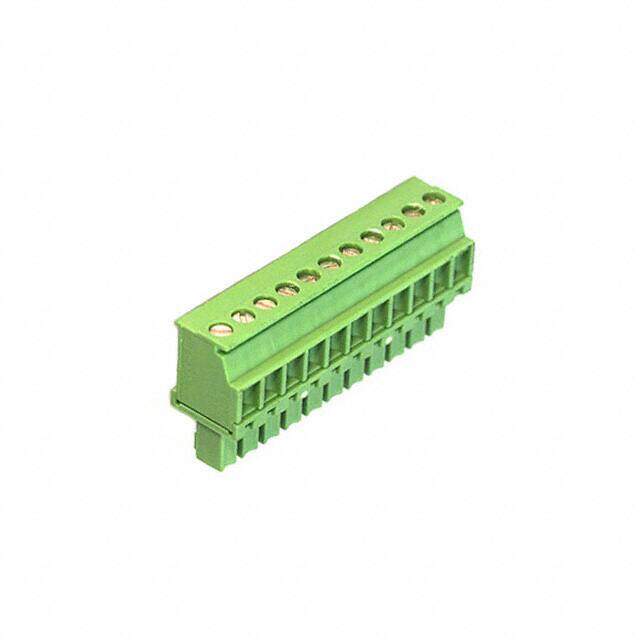

TERM BLOCK PLUG 11POS 3.81MM
PDF
/
Buying Options
Total Price: USD $10.48
Unit Price: USD $10.4808
≥1 USD $10.4808
≥10 USD $10.1948
≥100 USD $9.52776
≥500 USD $8.765592
≥1000 USD $8.601437
Inventory: 128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 100.999996g
Technical
Packaging Bulk
Published 2010
Series COMBICON MCVW
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 11
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation Straight
Depth 19.1mm
Insulation Height 0.752 19.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, UL, VDE, cULus
Number of Contacts 11
Housing Color Green
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Poles 11
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 14-30 AWG
Current - UL 8A
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Positions Per Level 11
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Current - IEC 8A
Number of Positions Per Level 11
Screw Size M2
Stripping Length 7mm
Dimensions
Height 12.5mm
Length 42.7mm
Width 10.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
